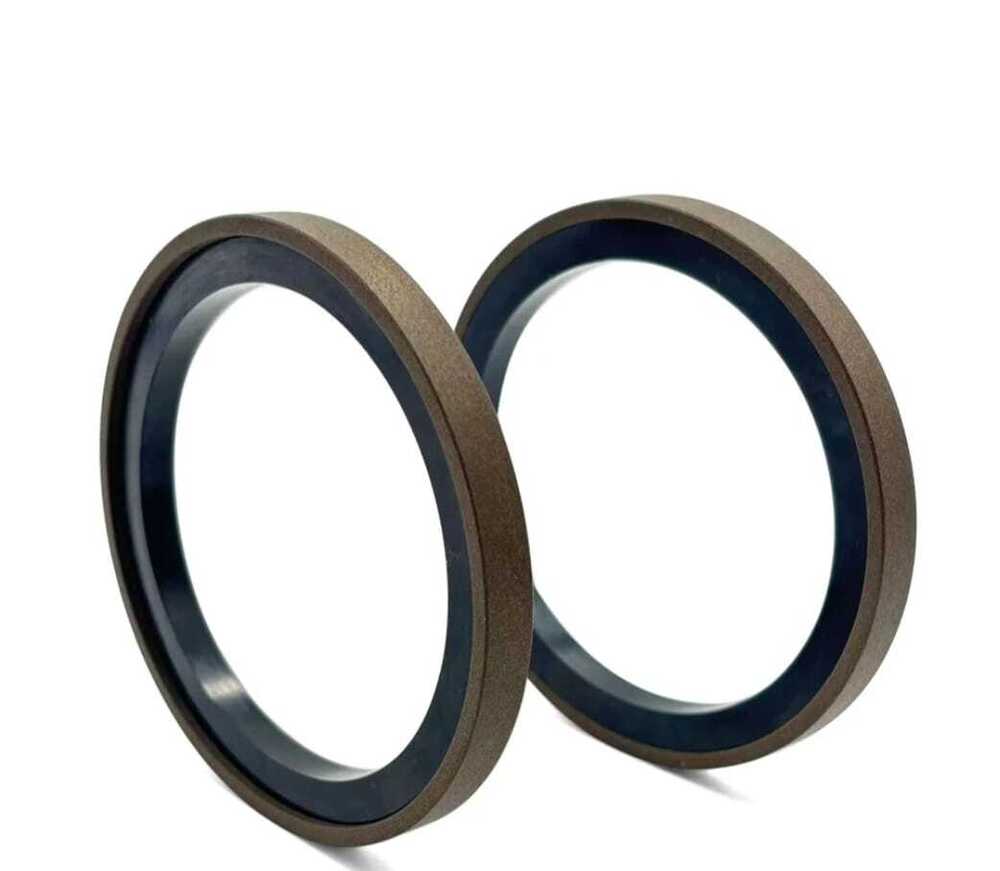

Spgw seal

Name: Spgw seal
Brand: ISS RUBBER & PLASTIC MFG
Price: 250 INR
Availability: InStock

Price 250 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Spgw seal Specification

Weight
Varies with size

Surface Finish
Smooth, machined or molded

Tolerance
Precision tolerance according to standard (0.01 mm or as specified)

Natural Rubber
No (commonly made from NBR/FKM and PTFE)

Tensile Strength
High (typically >15 MPa depending on material used)

Temperature Resistance
-30C to +200C (material dependent)

Density
2.2 Gram per cubic centimeter(g/cm3)

Diameter
Based on cylinder specifications; available in a wide range

Components
PTFE ring, O-ring energizer, backup rings

Resistance level
High resistance to abrasion and extrusion

Thickness
Varies by size (generally as per specification drawing)

Water Absorption
Low

Size
Standard and non-standard sizes available

Material
PTFE with NBR or FKM energizer and POM backup rings

Width
Customizable as per requirement or per standard dimension chart

Rubber Type
NBR (Nitrile Rubber) or FKM (Viton)

Thermal Conductivity
Low (typical for PTFE and NBR materials)

Product Type
Hydraulic Rod Seal

Flame Resistance Level
Standard elastomers; available in special flame-retardant compounds on request

Part Type
Sealing Element

Usage & Applications
Hydraulic cylinders, high-pressure sealing, construction machinery, injection molding machines, heavy equipment

Style
SPGW

Hardness
Approx. 90 Shore A (rubber part), varies with material

Feature
Excellent wear resistance, low friction, high pressure, and temperature resistance

Compression Ratio
Optimized to application (commonly up to 25%)

Color
Brown and Black

Ozone Resistance
Good

Service Life
Long (high durability in harsh environments)

Extrusion Gap
Suitable for standard and reduced extrusion gaps

Maintenance Requirement
Low

Design Type
Four-piece compact seal (Seal Ring, Back-up Rings, O-ring)

Compression Set
Low (critical for sealing performance)

Seal Profile
Double-acting

Application Media
Hydraulic oil, mineral oil, synthetic fluids, water glycol

UV Resistance
Moderate, better with FKM

Pressure Range
Up to 40 MPa (400 bar)

Dynamic Speed
Up to 1.0 m/s

Installation Groove Type
Rectangular groove

Oil Compatibility
Excellent with petroleum-based oils and many synthetic fluids

About Spgw seal

Discover instant savings with our SPGW seal-now available at a reduced price for unbeatable value. This unassailable four-piece compact masterpiece delivers eminent sealing performance up to 40 MPa pressure, featuring double-acting efficiency and compatibility with diverse media like hydraulic and mineral oils, synthetic fluids, and water glycol. Precision-engineered for rectangular grooves, it ensures minimal maintenance and high durability, even in harsh environments. Enjoy excellent oil compatibility, low friction, and superior resistance to abrasion and extrusion. Choose from customizable widths, standard or bespoke sizes, and benefit from our price cut today.

SPGW Seal: Versatile Applications Across Industries

Used as a vital sealing element, the SPGW seal is renowned for its reliability in hydraulic cylinders and high-pressure systems. Its area of application encompasses construction machinery, injection molding machines, and heavy-duty equipment, ensuring efficient performance in demanding environments. The site of application extends from industrial plants to field machinery, making it the preferred choice for both standard and adverse working conditions where consistent, secure sealing is essential.

SPGW Seal: Samples, Market Reach, and Delivery

Elevate your project's market value by experiencing our SPGW seal first-hand-samples are available on request. Our main export markets include Asia, Europe, and Africa, reflecting our product's global demand. With secure shipping protocols and stock ready for prompt dispatch, your order will be processed efficiently. Delivery time is minimized, ensuring you receive quality products swiftly, whether you require small or bulk quantities, enhancing the reliability of your entire supply chain.

FAQ's of Spgw seal:

Q: How is the SPGW seal typically used in hydraulic systems?

A: The SPGW seal is primarily used for sealing the piston in hydraulic cylinders within high-pressure systems, preventing fluid leakage and maintaining system efficiency in construction, industrial, and mobile machinery.

Q: What benefits does the SPGW seal offer over standard seals?

A: The SPGW seal provides enhanced pressure resistance up to 40 MPa, superior wear resistance, low friction, and compatibility with a wide range of hydraulic fluids. Its four-piece design extends service life and greatly reduces maintenance intervals.

Q: Where can the SPGW seal be installed?

A: SPGW seals are suitable for installation in rectangular grooves of hydraulic cylinders used in construction machinery, injection molding machines, heavy equipment, and related high-pressure environments.

Q: What is the process for ordering customized SPGW seals?

A: You can specify dimensions and material preferences based on the application. Our team will assist you with standard or bespoke sizing, and offer technical support to ensure optimal compatibility with your equipment.

Q: How does the SPGW seal ensure safety and durability in operation?

A: Its high tensile strength, optimized compression ratio, and use of robust materials such as PTFE and NBR or FKM energizers empower the seal to withstand extensive pressure, abrasion, and temperature fluctuations, ensuring unassailable performance and long service life.
