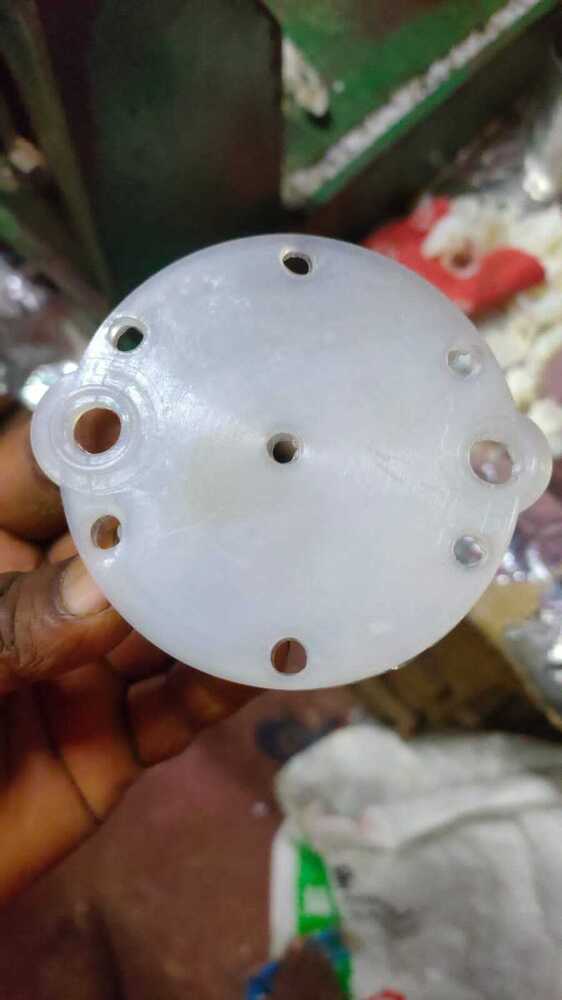

pu diaphragm

Name: pu diaphragm
Brand: ISS RUBBER & PLASTIC MFG
Price: 50 INR
Availability: InStock

Price 50 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

pu diaphragm Specification

Compression Ratio
High elasticity, 3:1 (approx.)

Resistance level
High resistance to oil, chemicals & wear

Length
Not applicable (round diaphragm)

Water Absorption
<1%

Tensile Strength
35-50 MPa

Flame Resistance Level
Moderate, UL-94 available on request

Material
Polyurethane (PU)

Ash %
< 1%

Width
Customizable as per requirement

Size
Standard: 75 mm diameter (other sizes available)

Hardness
Shore A 70-90

Tolerance
0.2 mm (standard manufacturing)

Style
Flat, circular, with pre-punched mounting holes

Product Type
PU (Polyurethane) Diaphragm

Surface Finish
Smooth finish, dust-free

Usage & Applications
Industrial sealing, pumping, actuator mechanisms, pneumatic systems

Part Type
Diaphragm Sealing Component

Temperature Resistance
-40C to +80C (continuous)

Diameter
75 mm standard (customizable)

Feature
Abrasion resistant, leakproof, flexible, oil and chemical resistant

Weight
Approx. 12 grams (depends on size)

Thermal Conductivity
Low, approx. 0.022 W/mK

Density
1.25 Gram per cubic centimeter(g/cm3)

Components
Main diaphragm, mounting holes

Thickness
2 mm (custom thickness available)

Color
White (other colors customizable)

Rubber Type
Not rubber; Polyurethane based

Natural Rubber
No, made from synthetic PU

Shape
Round with multiple holes for bolting

Chemical Compatibility
Resistant to oils, greases, mild acids, and alkalis

Mounting Holes
6 standard holes (custom numbers available)

Manufacturing Process
Compression molding or casting

Operating Pressure Range
Up to 10 bar (depends on size and thickness)

Service Life
Long life (up to 1 million cycles in optimum conditions)

About pu diaphragm

Experience the celebrated performance of our PU Diaphragms-a champion sealing component crafted from premium synthetic polyurethane. Designed with a venerable round shape, multiple mounting holes (6 standard or customized), and manufactured via reduced waste compression molding or precision casting, this diaphragm delivers outstanding longevity-up to 1 million cycles under optimum conditions. The hot deal offers chemical compatibility with oils, mild acids, and alkalis, plus high abrasion resistance. Customizable in size, thickness, and color, our leakproof, flexible solution is the ideal fit for industrial pumps, actuators, and pneumatic systems across India.

Exceptional Features and Application Versatility

Our PU diaphragm boasts extra features such as superior abrasion resistance, leakproof structure, and impressive flexibility. With high oil and chemical resistance, it excels in demanding industrial settings. Specifically engineered for general industrial sealing, actuator mechanisms, pumping solutions, and pneumatic systems, this component meets diverse application needs. Its customizable dimensions and robust construction guarantee suitability for a wide spectrum of machinery and operational environments.

Packaging Security, Sample Terms, and Certification Process

Diaphragms are securely packed to ensure dust-free, damage-resistant dispatching, often using sealed polythene bags and sturdy cartons. Samples are offered at a reduced rate, with quotations provided based on specifications. Upon confirmation, rapid dispatching follows. Certifications such as UL-94 for flame resistance are available on request, further affirming quality. Each batch undergoes meticulous inspection, guaranteeing products meet international standards and clients' expectations regarding reliability and safety.

FAQ's of pu diaphragm:

Q: How is the PU diaphragm manufactured and what benefits does this bring?

A: The PU diaphragm is produced through compression molding or casting, resulting in a smooth, dust-free surface and high dimensional accuracy. This method ensures consistency, durability, and long service life, even under demanding industrial conditions.

Q: What applications are ideal for using this PU diaphragm?

A: This diaphragm is excellent for industrial sealing, pumping systems, actuator mechanisms, and pneumatic applications where high resistance to oils, chemicals, and abrasion is essential. Its robust design is well-suited for challenging environments.

Q: When should I consider a customized diaphragm over the standard model?

A: A customized diaphragm should be considered when your installation requires unique mounting hole patterns, non-standard diameters, or specific thickness and color preferences to fit specialized equipment or operational requirements.

Q: Where is this PU diaphragm typically supplied from and shipped to?

A: The PU diaphragm is manufactured and supplied from our facility in India, with dispatching capabilities to industrial clients nationwide and for export, ensuring reliable delivery to a wide range of industries and regions.

Q: What is the process for requesting a sample or placing an order?

A: You can request a sample at a reduced rate, and receive a detailed quotation based on your technical requirements. Once specifications and terms are agreed upon, we promptly initiate the dispatching process to deliver quality-assured products.
