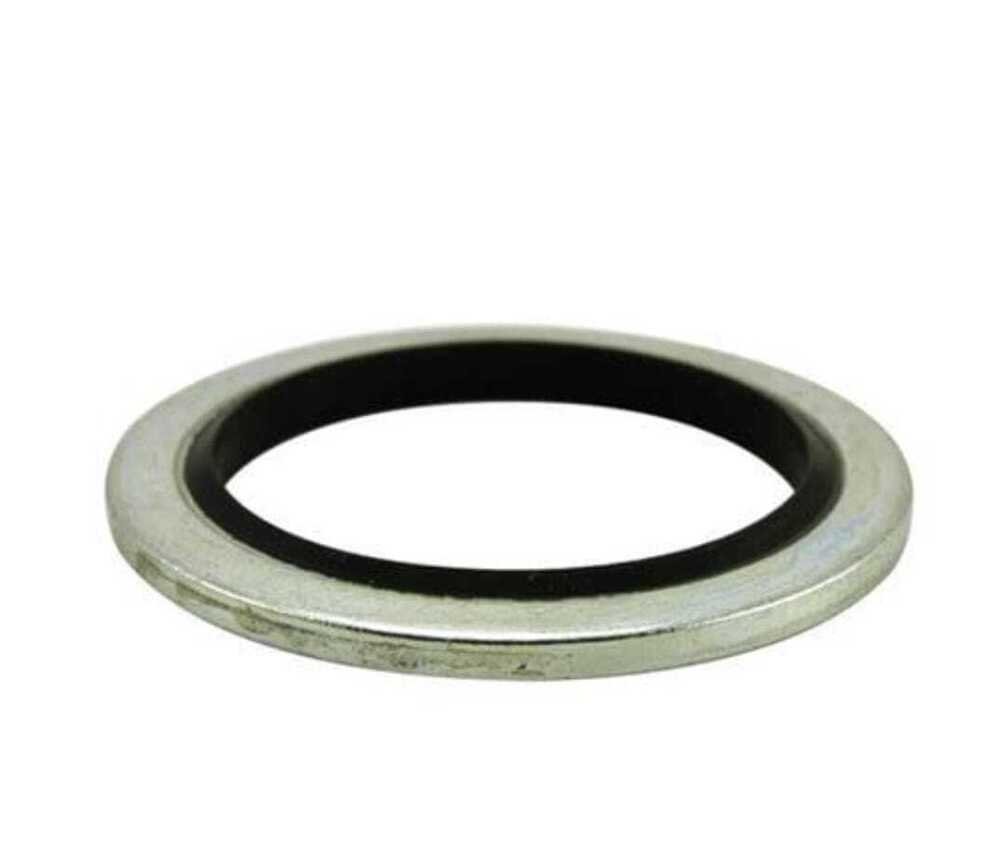

Dowty seal

Name: Dowty seal
Brand: ISS RUBBER & PLASTIC MFG
Price: 10 INR
Availability: InStock

Price 10 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Dowty seal Specification

Weight
Depends on size, typically 1-20 g each

Diameter
Commonly from 6 mm up to 50+ mm outer diameter

Water Absorption
Negligible (rubber insert resists water absorption)

Material
Stainless steel, carbon steel (zinc coated), or brass with bonded NBR or FKM rubber

Tolerance
ISO standard tolerance for washers and seals

Thickness
Typically 1-3 mm

Resistance level
High resistance to hydraulic fluids, water, and some chemicals

Tensile Strength
Typically >10 MPa (depends on rubber material)

Part Type
Hydraulic Seal, Washer

Compression Ratio
Optimized for sealing under compression (typically 10-20%)

Components
Metal ring, bonded rubber insert

Usage & Applications
Hydraulic fittings, high-pressure systems, fluid transfer systems

Temperature Resistance
-30C to +120C for NBR, up to +200C for FKM

Size
Available in standard and custom sizes to fit metric and imperial threads

Thermal Conductivity
Low (for rubber insert); metal ring conducts heat

Width
Varies (commonly 2 mm - 10 mm depending on size)

Hardness
As per material, usually 70-90 Shore A (rubber)

Color
Metallic with black inner ring

Product Type
Dowty Seal / Bonded Seal

Density
7.8 Gram per cubic centimeter(g/cm3)

Flame Resistance Level
Standard; specific flame-resistant versions available

Surface Finish
Metal: smooth, plated; Rubber: smooth

Rubber Type
NBR, FKM, EPDM available

Feature
Leak-proof, high pressure resistance, reusable

Style
Metal ring with bonded rubber insert

Natural Rubber
Generally NBR (Nitrile Butadiene Rubber) or FKM (Viton); Natural Rubber not common

Shape
Flat washer with central elastomeric sealing ring

Installation
Easy installation, self-centering

Sealing Principle
Axial compression, dynamic and static sealing capability

Compatibility
Suitable for hydraulic oils, water, mineral oil, some synthetic fluids

Reusability
Recommended for single use, but can be reused if undamaged

Compliance Standards
DIN 7603, ISO 6149, BS 1806

Corrosion Resistance
High (especially with stainless steel and plated versions)

Working Pressure
Up to 1500 bar (depends on seal size and material)

Dowty seal Trade Information

Minimum Order Quantity
100 Pieces

Main Domestic Market
All India

About Dowty seal

Find the preeminent sealing solution with the Dowty seal, specially engineered for hydraulic fittings and high-pressure systems up to 1500 bar (depending on size and material). Crafted from sterling stainless steel, carbon steel, or brass and paired with superlative NBR or FKM rubber inserts, this flat washer offers leak-proof assurance and outstanding corrosion resistance. Enjoy easy installation, self-centering alignment, and compliance with DIN 7603, ISO 6149, and BS 1806 standards. Buy in standard or custom sizes suited for metric and imperial threads-perfectly compatible with hydraulic oils, water, and select synthetic fluids. Manufactured and supplied across India.

Dowty Seal Application & Advantages

Dowty seals are applied by compressing the metal washer and central elastomeric sealing ring axially within hydraulic fittings and high-pressure fluid systems. Widely used by engineers and maintenance professionals, these seals stand out for their dynamic and static sealing capability, robust corrosion resistance, and superior leak-prevention. Their competitive edge includes easy installation, self-centering design, and adaptability to a variety of industrial fluids and thread configurations, ensuring reliable performance in demanding applications.

Sample Policy, Certifications & Quick Dispatch

Our Dowty seals are ISO and DIN certified to guarantee compliance and quality for every batch. Purchase orders enjoy quick dispatch and delivery, thanks to our stock ready policy for standard sizes. Custom dimensions are also fulfilled efficiently. Sample requests are welcomed, making it easier for clients to assess product fit before large orders. With a streamlined process, customers can trust consistent availability and timely shipping throughout India and global markets.

FAQ's of Dowty seal:

Q: How do I correctly install a Dowty seal for optimal performance?

A: To install a Dowty seal, place the flat washer with the rubber insert between the mating surfaces of the fitting and tighten to create axial compression. This ensures both dynamic and static sealing capability for leak-proof performance.

Q: What are the main benefits of using a Dowty seal in hydraulic systems?

A: Dowty seals provide superlative sealing under high pressure, resist corrosion (especially when using stainless or plated versions), and are compatible with a range of fluids commonly used in hydraulic equipment. Their design also ensures easy, self-centering installation.

Q: Where can Dowty seals be used effectively?

A: Dowty seals are especially suitable for hydraulic fittings, high-pressure fluid lines, and fluid transfer systems found in industrial, automotive, and machinery settings, thanks to their robust construction and dependable sealing properties.

Q: What is the recommended process if I want to reuse a Dowty seal?

A: Although Dowty seals are designed for single-use, they can potentially be reused if undamaged. Ensure the seal's rubber and metal components are intact and free of deformation before reinstalling to maintain reliable sealing.

Q: When can I expect shipment after placing a purchase order?

A: Dowty seals in standard sizes are stock ready, so you can expect quick dispatch, often on the same or next business day. For custom or large orders, our team will communicate lead times based on current production schedules.
