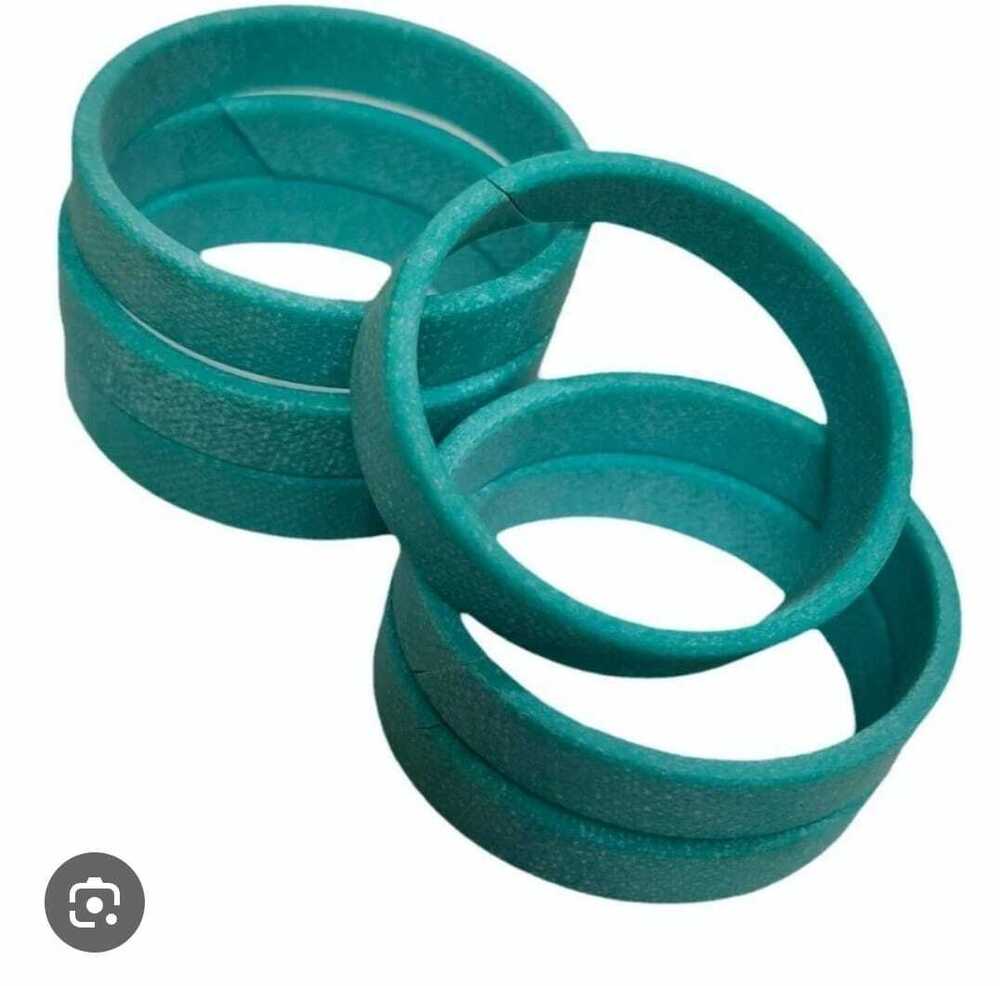

Guide Ring

Name: Guide Ring
Brand: ISS RUBBER & PLASTIC MFG
Price: 50 INR
Availability: InStock

Price 50 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Guide Ring Specification

Tolerance
0.1 mm

Size
Custom sizes available as per requirement

Density
1.5 Gram per cubic centimeter(g/cm3)

Surface Finish
Smooth, machined

Diameter
8 mm to 300 mm (available in multiple sizes)

Length
As per cylinder requirement

Color
Green

Tensile Strength
15-25 MPa (varies with material)

Style
Split or Endless (as required)

Natural Rubber
No, typically made from polymer or thermoplastic material

Product Type
Guide Ring

Usage & Applications
Hydraulic and pneumatic cylinders, sealing applications, machine guidance systems

Weight
Varies by size

Part Type
Sealing/Guiding Component

Water Absorption
Low (<0.2%)

Flame Resistance Level
Standard (can be customized for high flame resistance)

Hardness
60-65 Shore D (depends on material)

Thickness
1 mm to 10 mm (standard/custom)

Feature
Low friction, non-metallic, wear-resistant, reduces metal-to-metal contact

Thermal Conductivity
Low (material-specific)

Material
Polyacetal, PTFE, Phenolic resin, Polyester resin, Polymer composite

Components
Guide Ring

Resistance level
Excellent chemical and wear resistance

Temperature Resistance
-40C to +120C (material-dependent)

Width
Various (typically 5mm to 50mm, customizable)

Environmental Stability
Stable under UV, ozone, and humidity

Machinability
Good, can be cut to precise dimensions

Brittleness Temperature
-50C to -60C (varies by resin type)

Friction Coefficient
Low, optimized for smooth sliding

Application Pressure Range
Up to 400 bar (material dependent)

Custom Design
Available on request

Chemicals Resistance
Resistant to oils, greases, hydraulic fluids, and most solvents

Corrosion Resistance
High, does not corrode like metal rings

Rotational Speed Limit
Suitable for high-speed cylinder operations

Guide Ring Trade Information

Minimum Order Quantity
50 Pieces

Main Domestic Market
All India

About Guide Ring

Experience the rarefied performance of our Guide Ring, engineered for the highest standards with special rates now available. This gorgeous, low-friction guide ring boasts a robust construction from advanced polymers and resins, delivering towering resistance to wear, corrosion, and extreme temperatures. The latest design ensures excellent machinability and precise customizations for your specific requirements. Ideal for high-speed hydraulic and pneumatic cylinders, these rings offer exceptional chemical resistance and a fresh, smooth surface finish, reducing metal-to-metal contact and enhancing operational longevity. Available in split or endless styles, tailored sizes, and eye-catching green.

Key Application Sites and Usage Method

Our Guide Ring is a vital component in hydraulic and pneumatic cylinders, machine guidance systems, and diverse sealing applications. Its primary site of application spans industrial environments where smooth, low-friction sliding is critical. To apply, it is precision-machined and installed within the guide area of the cylinder, ensuring optimal alignment and wear reduction. The customizable width, thickness, and diameter offer flexible area-of-application options across a wide variety of machinery and pressure conditions.

Delivery Schedule, Sampling Policy, and Export Markets

Upon quotation approval, the Guide Ring is securely packaged and prepared for shipment with delivery times tailored to order volume and customization. Samples are available on request under our clear sample policy, helping customers assess suitability before bulk purchase. Our main export markets include Europe, Asia, the Middle East, and Africa, ensuring a global reach for these premium-quality products. Every shipment is diligently tracked for reliability, and packaging meets international standards for safety and integrity.

FAQ's of Guide Ring:

Q: How is the Guide Ring installed in hydraulic or pneumatic systems?

A: The Guide Ring is precisely cut or machined to size and fitted into the guidance area of hydraulic or pneumatic cylinders. Installation can be performed with standard cylinder assembly processes, ensuring smooth and secure placement.

Q: What advantages does this Guide Ring have over metal rings?

A: Unlike metal rings, this guide ring offers low friction, high corrosion resistance, and excellent chemical resistance. Its non-metallic nature reduces wear on mating components, ensuring longer service intervals and smoother operation.

Q: When can I expect delivery after placing an order?

A: Delivery typically depends on the quantity and customization required. Most shipments are dispatched promptly after quotation confirmation, with lead times communicated in advance. Expedited packaging and shipment are available for urgent requirements.

Q: Where can these Guide Rings be used aside from hydraulic applications?

A: In addition to hydraulic and pneumatic cylinders, these guide rings are suitable for machine guidance systems and various industrial sealing applications requiring low friction and high wear resistance.

Q: What is the process for ordering custom sizes or flame-resistant Guide Rings?

A: Contact us with your specific dimensions or flame resistance requirements. We will provide a formal quotation, and upon approval, manufacture the custom rings to your exact specifications, followed by secure shipment and reliable delivery tracking.
